Colored stranded wire

Colored stranded wire

  • Category:Twisted wire
  • Number of Views:0
  • Release Time:2022-07-18 15:20:24
  • Overview

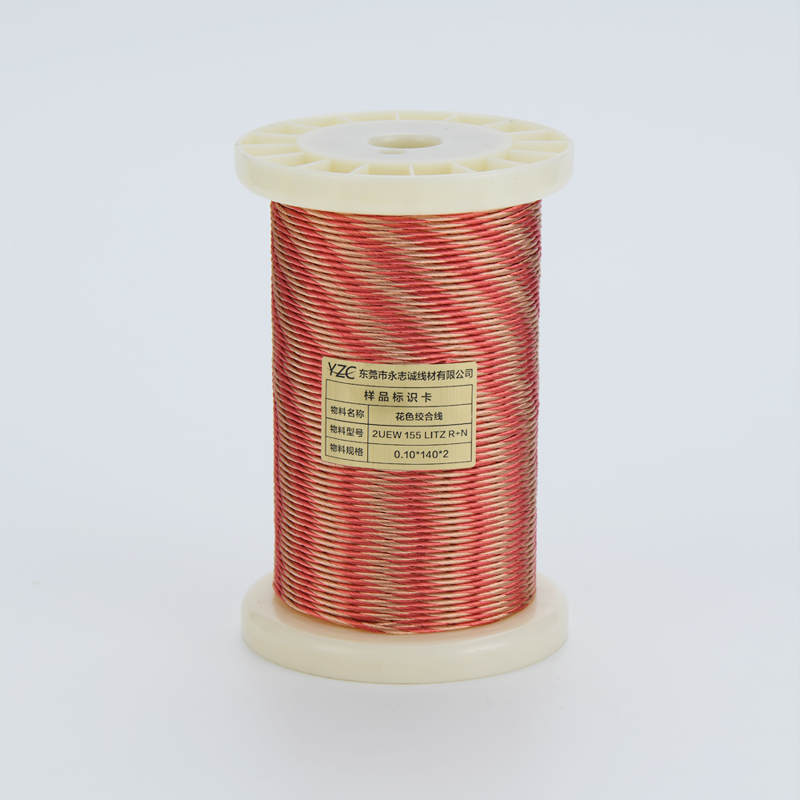

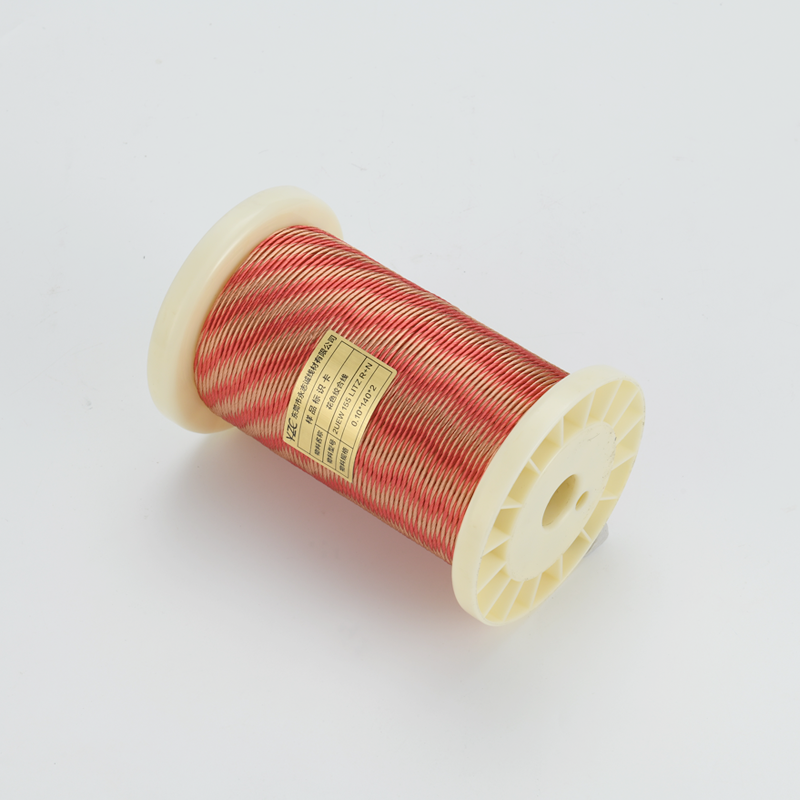

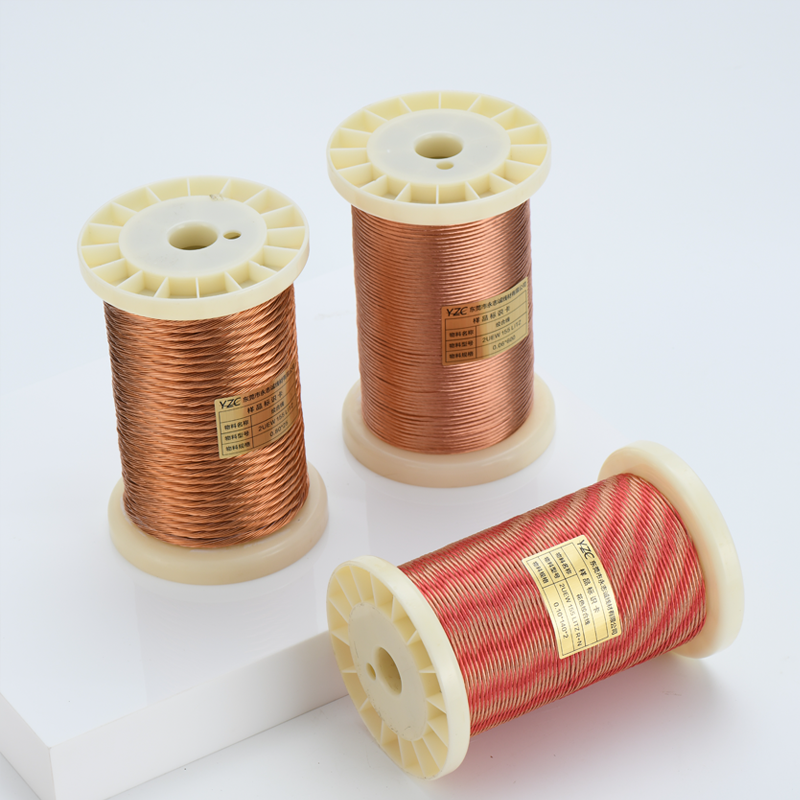

Product name: Color twisted wire

Model: 2UEW155 LITZ +N

1, characteristics: Twisted wire by strands of enameled wire twisted, can effectively reduce the "skin effect" in high-frequency applications

And proximity effect, thereby reducing loss. With the same cross-sectional area of the wire, the stranded wire can reduce the impedance, increase the conductivity, improve the efficiency and reduce the heat generated by the original, which is a magic weapon for cooling high-power products. The stranded wire also has better flexibility and woundability.

2, specification range: single line diameter: 0.05mm - 0.80mm;

Temperature class: 130℃, 155℃, 180℃, 220℃;

Number of shares: 2-6000 shares;

Number/length of lay: 4-120turns /m.

3, implementation standards: JIS, GB or customer standards.

4, Application: At present, it has been widely used in wireless charging, charging pile, car wire, backlight transformer, high-frequency transformer, high-frequency coil and other high-frequency field electronic components, network connectors, hearing AIDS, IC cards, induction heaters, electromagnetic devices, power supplies and unlimited transmission, high-frequency transformers, ultrasonic generators and other power products. The twisted wire can also be processed into silk-covered wire and Mylar wire.
