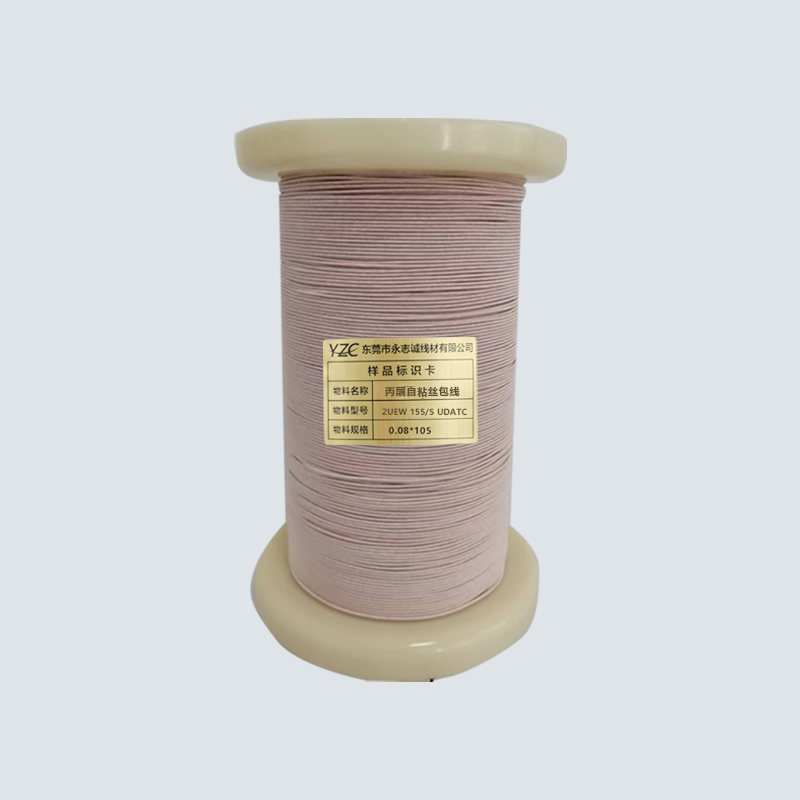

Silk-covered wire

Product name: silk-covered wire

Model: 2UEW 155 USTC

1, characteristics: also called gauze wire, it is an electronic wire class named after the outer layer of multiple strands of varnished stranded wire covered with one or two layers of polyester (polyester), nylon (polyamide), bulletproof silk or natural silk; In addition to meeting the electrical properties, thermal properties, chemical properties and mechanical properties of stranded wire, silk-covered wire products greatly improve the insulation properties and machining resistance of the product, reduce the interlayer capacitance, improve the Q value of the product, reduce the cost of the product, and have the same characteristics of varnished stranded wire.

2, specification range: single line diameter: 0.05mm - 0.80mm;

Temperature class: 130℃, 155℃, 180℃, 220℃;

Number of shares: 2-6000 shares.

3, silk-covered wire classification:

(1) Ordinary silk-covered wire: Wrap one or two layers of polyester insulated wire on the surface of a single strand of enameled wire or varnished stranded wire.

(2) Self-adhesive silk-covered wire: In a single strand of enameled wire or enameled stranded wire on the surface layer and then wrap a layer or two layers of special wire to make it self-adhesive characteristics of insulated wire, including: acetone bonded silk-covered wire, hot air self-adhesive silk-covered wire, pre-bonded hot air silk-covered wire.

4, implementation standards: JIS, GB or customer standards.

5, Application: used in wireless charging, antenna inductance, industrial lighting equipment, video equipment, ultrasonic equipment, high-frequency inductance and transformer, data line, etc.
